Installation Steps (Kingspan KS Series)
-
Reference and trims
- Snap a level base/head line. Install Kingspan base channels and corner trims with continuous butyl behind.
- Verify the starting corner is plumb; brace if needed.
-
Joint sealing prep
- Inspect factory-applied gaskets on AWP; ensure they’re intact and clean.
- Apply site-applied butyl mastic/tape exactly where Kingspan details indicate (e.g., panel ends, laps, penetrations).
-
Set the first panel
- Lift with non-marring cups; place into base channel with required movement clearance (often 10–12 mm / 3/8–1/2 in).
- Plumb and brace. Confirm gasket alignment before fixing.
-
Fixing to structure
- AWP: Install concealed clips/fasteners at supports per table; do not face-fix through the face unless design calls for it.
- RW: Through-fix at crowns into purlins/joists; use specified fastener type/length and EPDM washers; set torque to seat without dimpling.
Do not overdrive fasteners. The washer should seat and slightly compress without dimpling the face sheet.
Tolerances and Typical Measurements
| Item | Typical Kingspan Value | Notes |
|---|---|---|

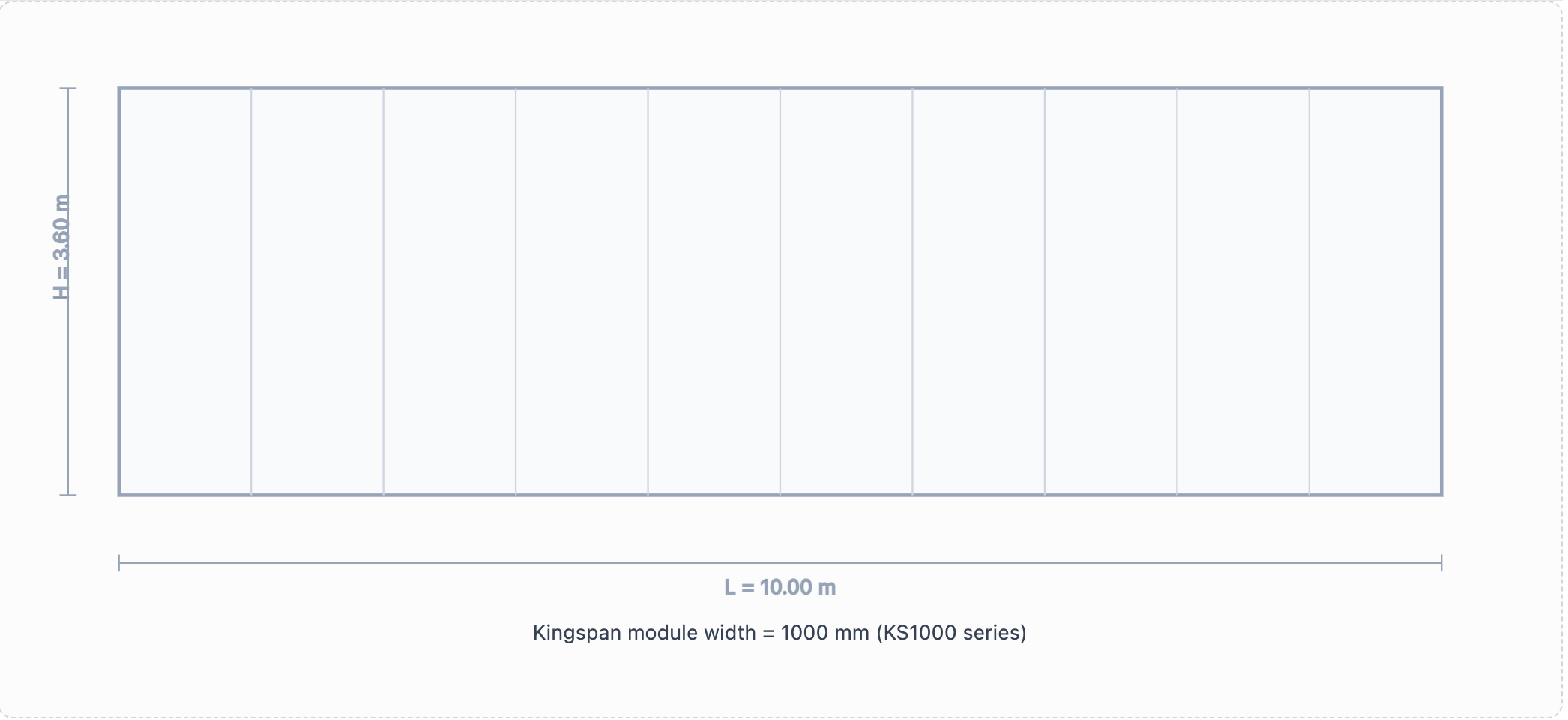

| Module width | 1000 mm (KS1000 series) | Confirm exact net cover for your panel profile. |
| Panel thickness | 50–150 mm typical | Thicker panels improve R-value and spanning; verify availability per product. |
| Edge distance (fasteners) | ≥ 40 mm (1-1/2 in) | From panel edge or skin; see detail. |
| Perimeter spacing (trims) | 200–300 mm (8–12 in) o.c. | Increase at corners/high-wind zones. |

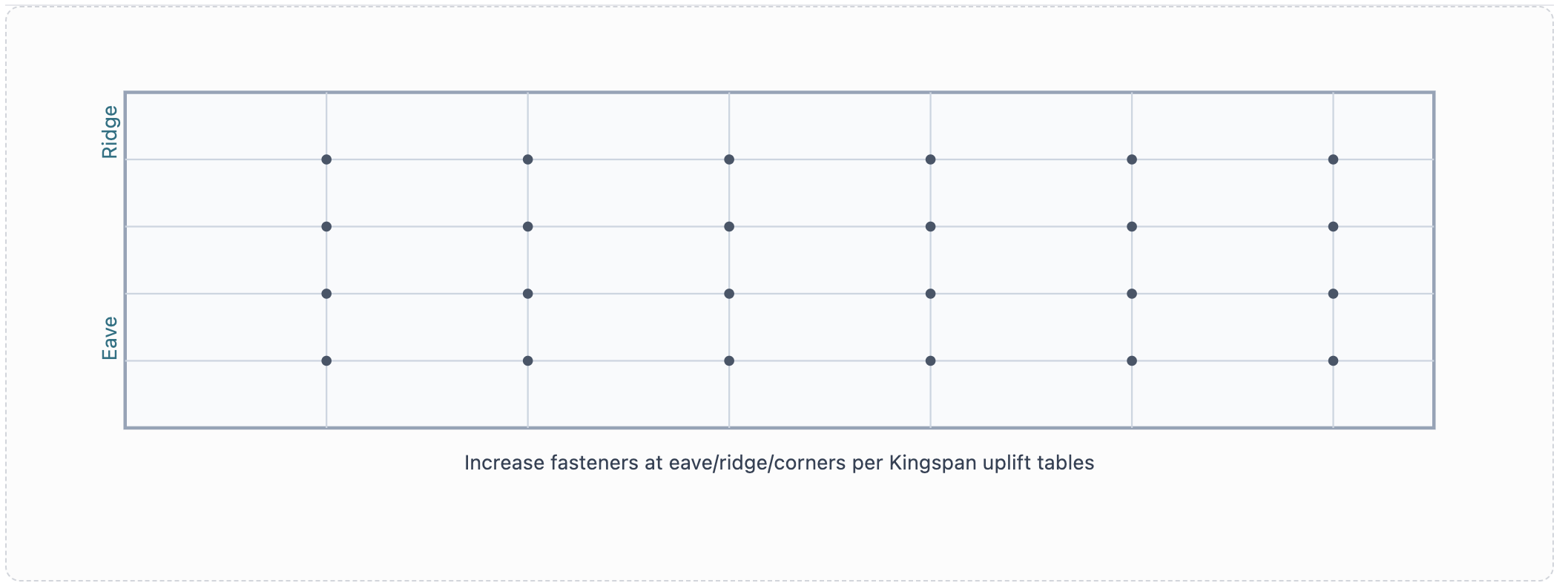

| Field spacing (to supports) | AWP: clip/fastener spacing per table; RW: 400–600 mm (16–24 in) o.c. typical | Finalize from Kingspan wind uplift/span tables. |
| Movement gap at base/head | 10–12 mm (3/8–1/2 in) | Don’t foam solid; preserve movement and drainage paths. |

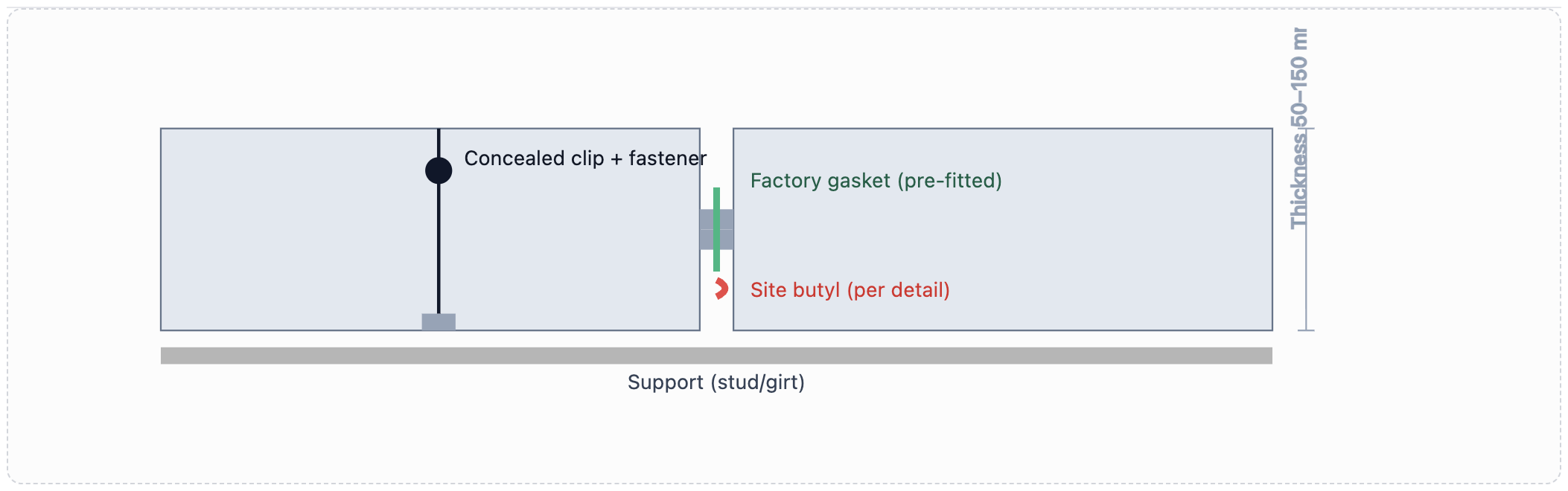

Diagram A: Kingspan AWP Secret-Fix Joint (Concept)
AWP joints rely on full gasket engagement. Don’t stretch or nick gaskets; keep mating surfaces clean.
If you are having any issues with this product do get in touch with our team using this form
